Products

Complete earthing and lightning protection material

Standard sizes stocked, non-standard sizes arranged on order. We do not publish prices — send your quantity and delivery location and we will quote against it.

Earthing Electrodes

Earthing Electrodes

GI Earthing Electrode

Hot dip galvanised, perforated earthing pipe electrodes with terminal plate — an economical and dependable option.

Type
Pipe-in-pipe / solid rod
Diameter
40 / 48 / 80 mm pipe
Length
1 / 2 / 3 metre

Earthing Electrodes

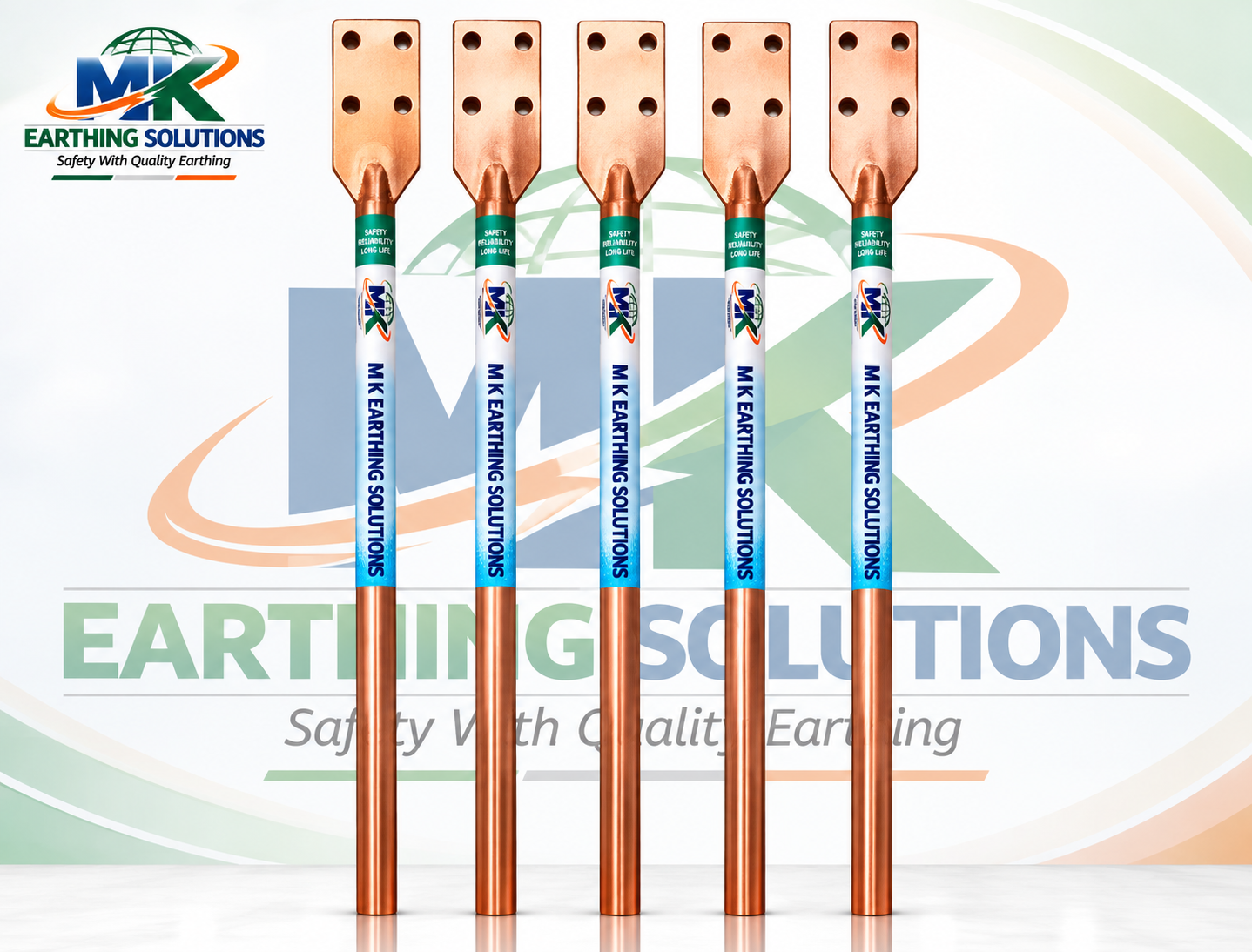

Copper Bonded Earthing Rod

High conductivity copper bonded earthing rod with copper terminal plate — a durable and reliable earthing solution.

Type
Copper bonded earthing rod
Diameter
Available in multiple sizes
Length
1 / 2 / 3 metre

Lightning Protection

Lightning Protection

Lightning Arrester

Conventional and ESE type air terminals with mounting base, mast and down conductor accessories.

Types
Conventional spike / ESE type
Material
Copper / stainless steel
Mounting
Base plate with mast

Earthing Compounds

Earthing Compounds

Earthing Back Fill Compound

Conductive, non-corrosive back fill compound that reduces and stabilises soil resistivity around the electrode.

Packing
25 kg bag (standard)
Form
Ready to use granular powder
Nature
Non-corrosive, moisture retaining

Strips & Flats

Strips & Flats

GI Strip

Hot dip galvanised iron strips for earth grid, bonding and down conductor runs, cut to required sizes.

Common sizes
25x3, 25x6, 32x6, 50x6, 65x8 mm
Coating
Hot dip galvanised
Length
As per requirement

Strips & Flats

Copper Strip

High conductivity electrolytic copper strips and flats for earth busbars and critical earthing runs.

Common sizes
25x3, 25x6, 50x6, 75x10 mm
Grade
Electrolytic copper, high conductivity
Finish
Bare / tinned on request

Plates

Wires

Pit & Chamber

Pit & Chamber

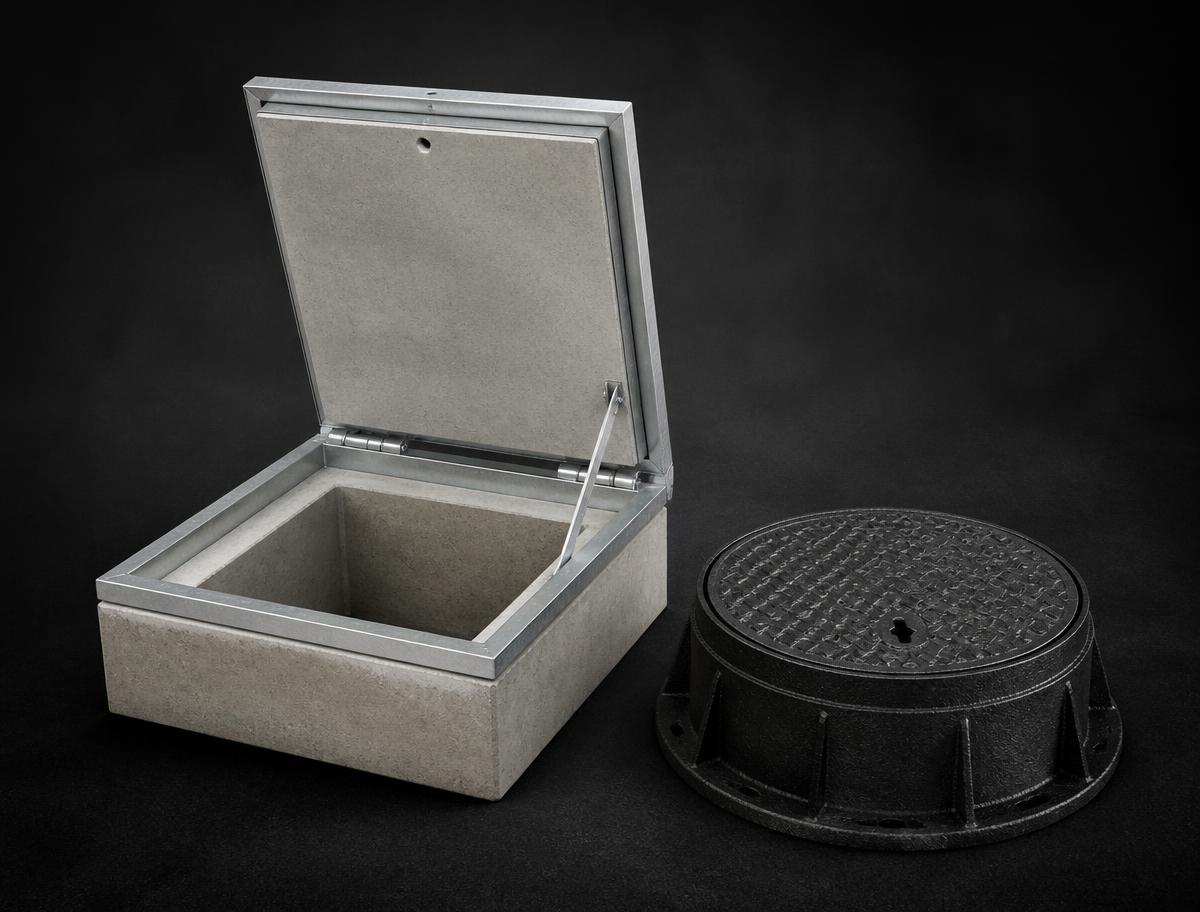

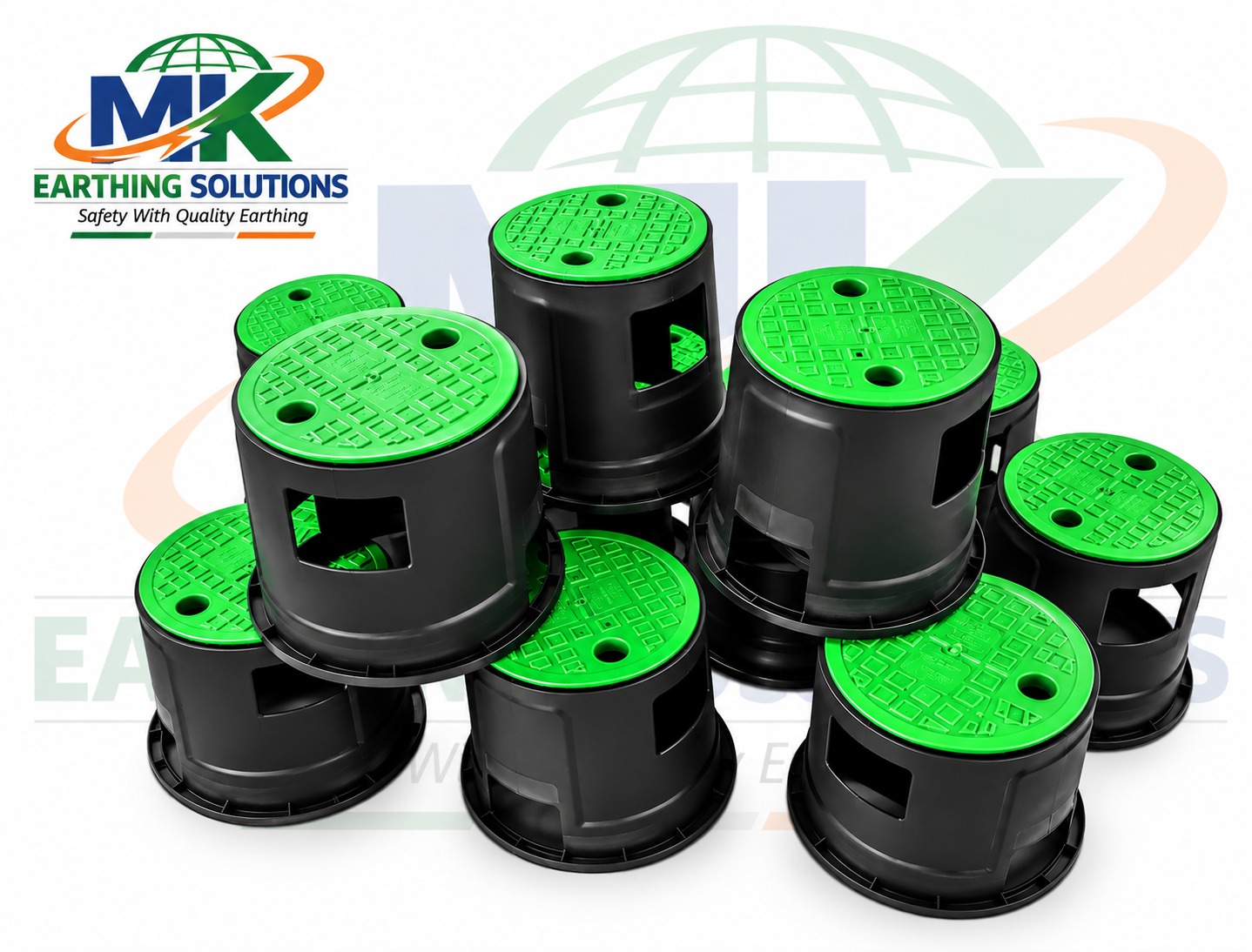

Earthing Pit Cover

RCC, cast iron and FRP earthing pit covers with frame and lid for safe, inspectable earth pits.

Materials
RCC / cast iron / FRP
Sizes
300x300, 450x450, 600x600 mm
Type
Hinged or lift-off lid with frame

Accessories

Get in touch

Need Earthing Material or Installation for Your Project?

Send us your requirement, quantity and delivery location. Our team will help you with the right earthing solution and quotation.
